The machine V2000 is a modern and functional cartoner, realized with building system "with flange" with the following features: easily inspectable and cleanable; the machine is built according the GMP rules; format change simple and fast, regulations with indicators, very few parts to be replaced; ergonomic positioning of the warehouse of cases and sheets for an easy loading; forced opening system of the cases of innovative type; product transport, cases and machine transmission with toothed belts to reduce sound emission and increase the reliability; control panel with touchscreen user interface; great versatility.

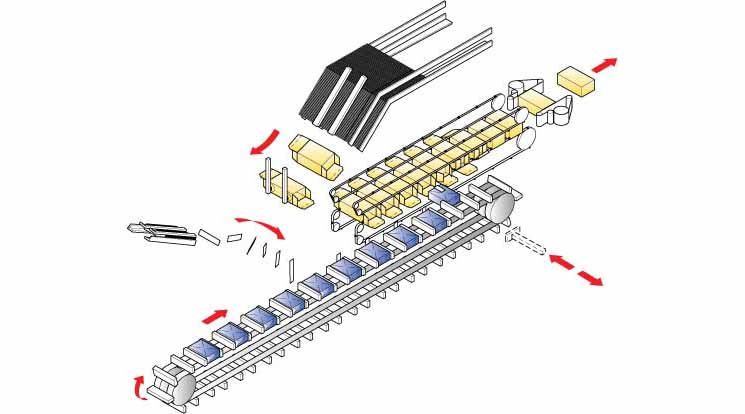

Principle of operation

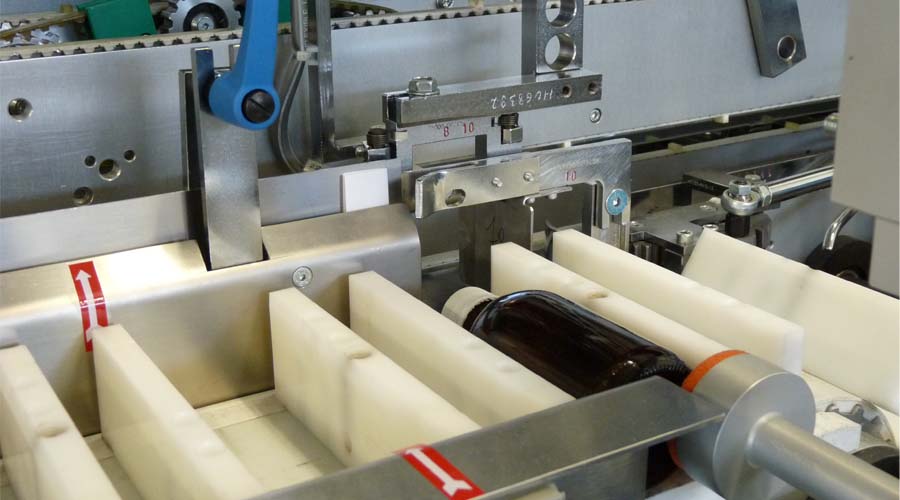

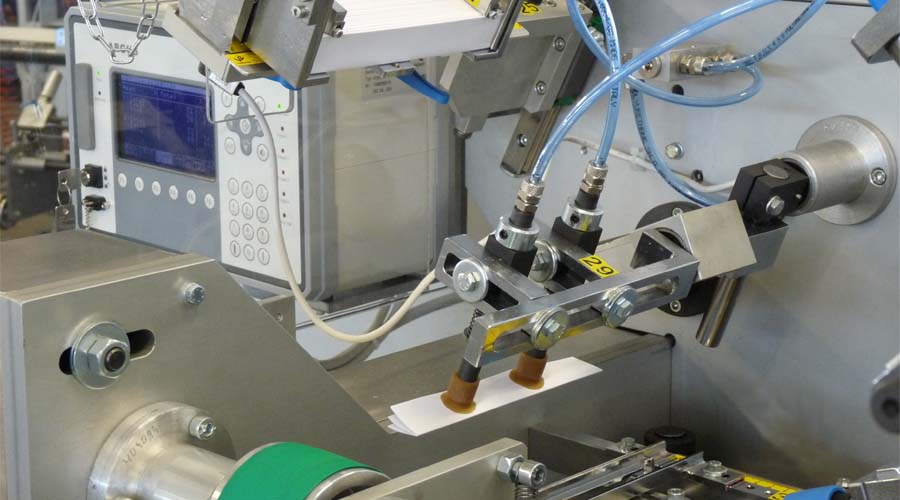

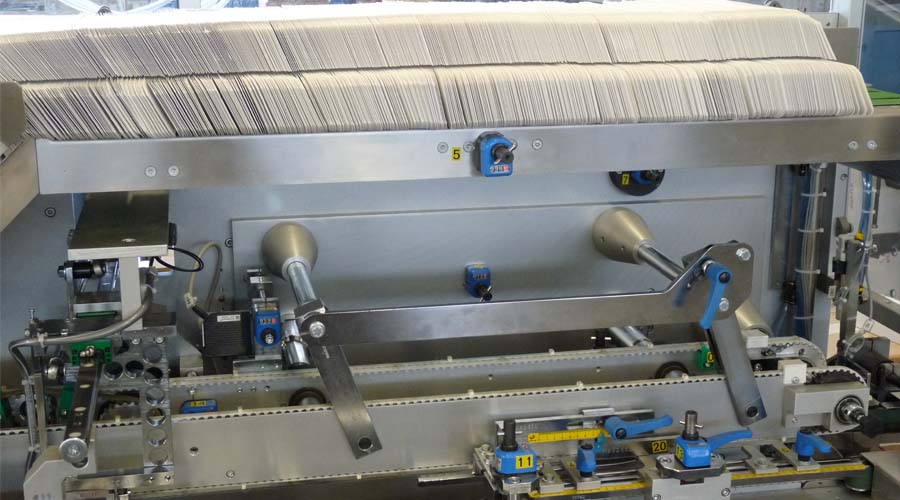

The case is picked up from the warehouse and splayed through a system of three suction cups. The sheet is picked up from warehouse and deposited through suction cups. After which it is introduced between the conveyor belts and subsequently introduced in the vertical transport. Products arrive to the pusher unit through a tray transport. The pusher unit insert the product and the sheet inside the case. The case is moved through a series of chain that bring them utill the exit of the machine. After the product has been introduced, the case is closed with a slot or glue.

Featured groups

Alimentación automática del producto (Blister, frascos, tubos, etc.). Lector de códigos, con expulsor. Codificadores: embossing o tinta/embossing. Dispositivo de introducción del producto: extendido o plegado.

Maximum speed: 120 cases/min
