V40

Description

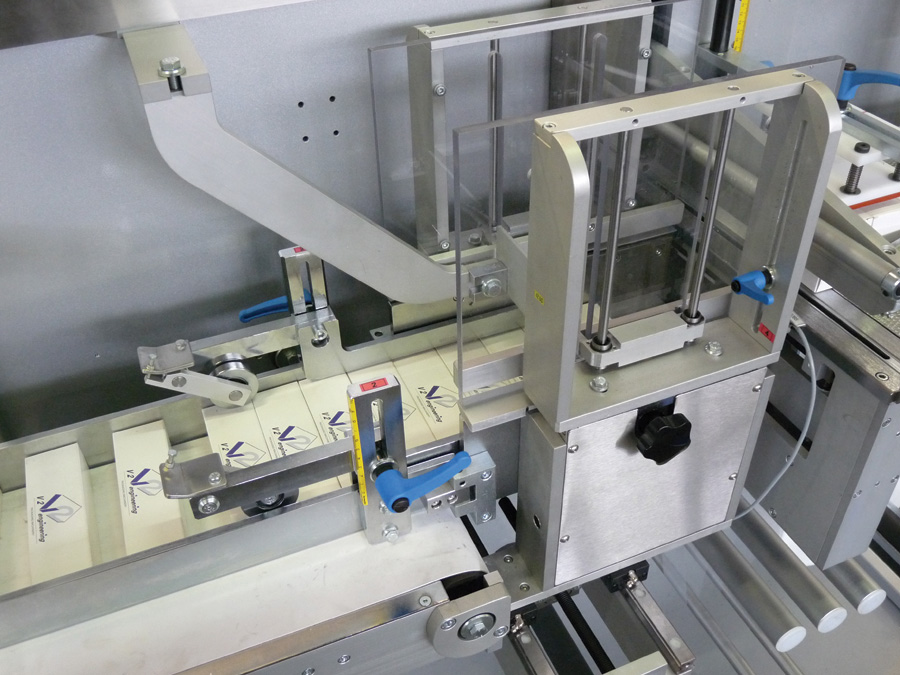

Automatic wrapping machine with modern “balcony” style construction suitable for wrapping small or medium sized parallelepiped products and non with film from reel. The STRETCH machine version uses stretchable polyethylene film to carry out banding around the bundle. The SHRINK machine version uses heat shrinking film to carry out wrapping around the bundle thanks to heating elements at exit or to a shrink tunnel. Compact dimensions, ergonomic “balcony” style construction and extreme flexibility make the machine suitable to be used in various sectors such as cosmetic, pharmaceutical or food.


Principle of operation

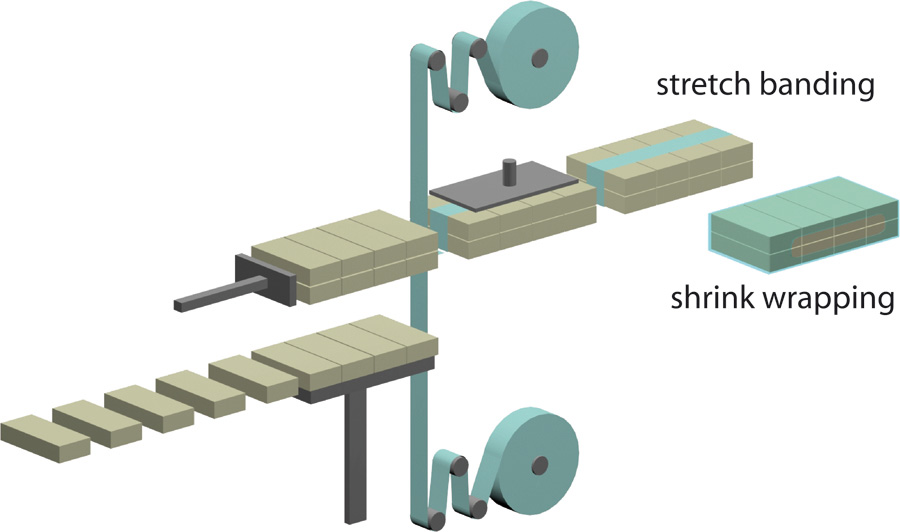

The electromechanical stacker forms the bundle that is then shifted against the wrapping film. Film unwinding is carried out by two motorized reels with tension always under control. Sealer and counter sealer are equipped with a cooling system to reach an optimal sealing. Products can arrive in line with machine exit or at 90°. Special feeding units on customer’s demand according to product type and production line lay-out.

Production capacity: Max 40 cycles /minute (relating to product)
